4NVR Series

4NVR Series
Features & Benefits Description
Power range

0.5 – 2.0 HP

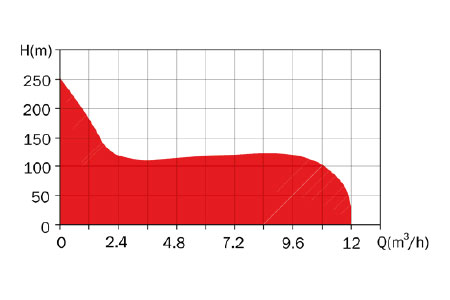

Max. Flow rate

12 m3/hr

Max. Head

250 m

Max. Liquid Temperature

+33°C

Max. Operating Pressure

28 bar

4NVR Series

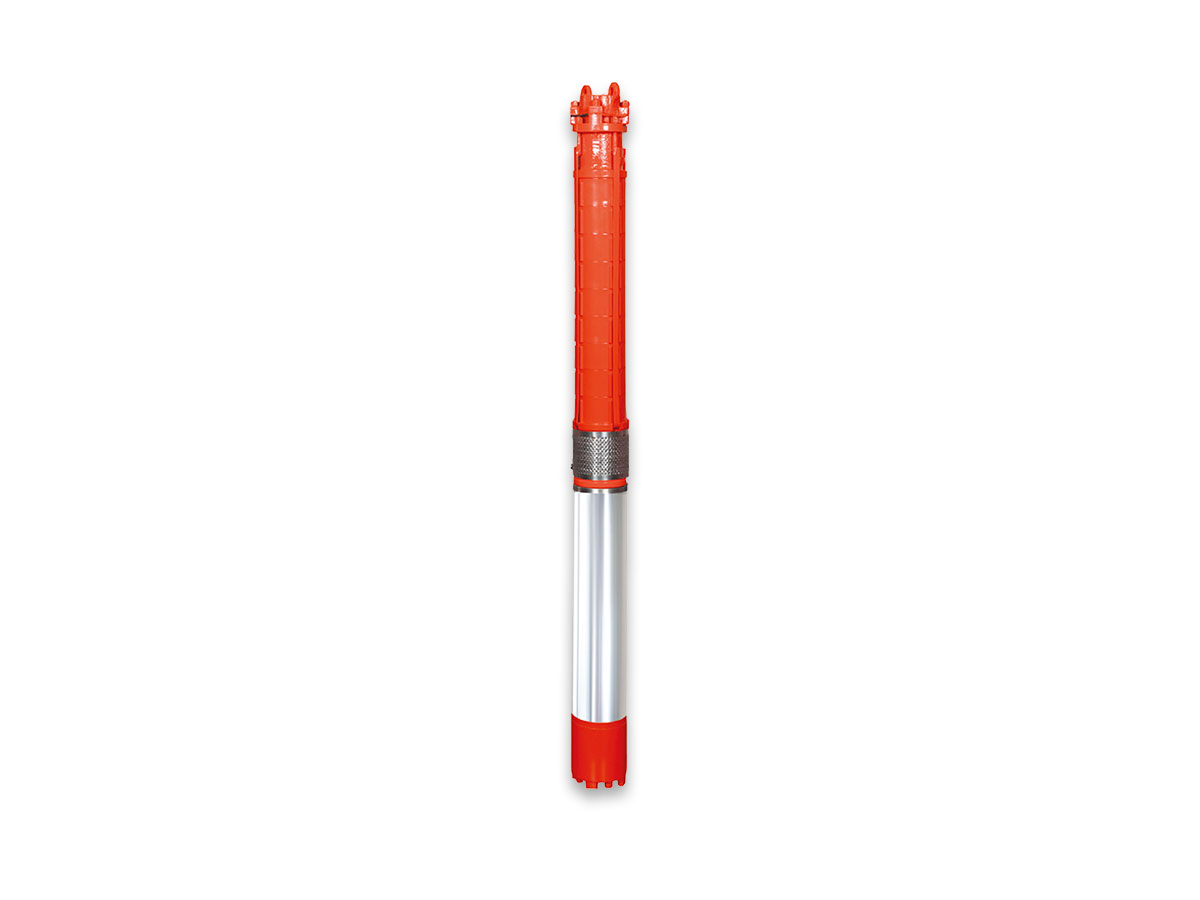

Borehole submersible value range pumps for 4" (100mm) deep wells with radial flow Impellers coupled with our high precision motors give splendid performance. Improvised diffuser design gives better discharge properties. The noryl and hydraulic materials prevent the impellers from clogging even after long stationary periods.

• Easy to dismantle, rewind and install.
• Optimized design for an equivalent performance with regular seamless tubular Stainless steel body model.
• Compact and modular design.

Applications :

• Agriculture
• Domestic Building Services
• Public Utilities
